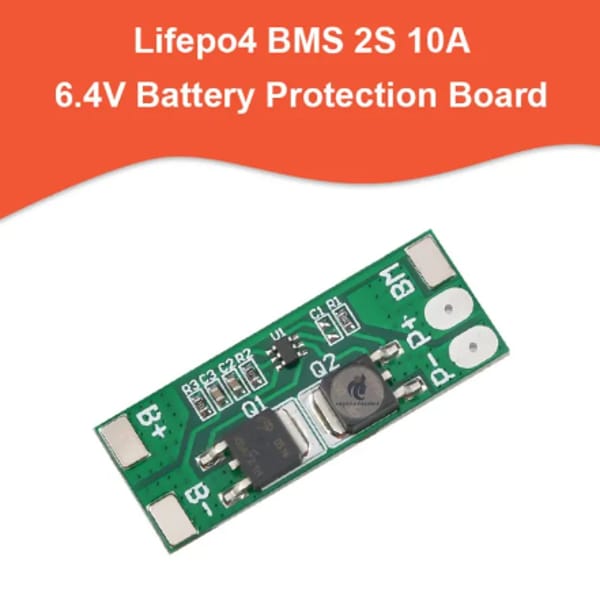

Lifepo4 BMS 2S 10A 6.4V Battery Charge Protection Board

2s 10A bms

categories

Category List

All products

•

Details:

• Warranty
  no

• Model: HX-2S-DO1 Size: 41*16*3.5mm
• Maximum operating current: 8A
• Upper limit instantaneous current: 10A
• Overcharge voltage range: 3.65v±0.05v
• Over-discharge voltage range: 2.0v±0.05v
• Quiescent current: less than 30uA
• Charging voltage: 7.2v-8.4v
• Short circuit protection: can be protected,
• delayed self-recovery

Lifepo4 BMS 2S 10A 6.4V Battery Charge Protection Board

89 BDT99 BDTSave 10 BDT

sold_units 56

1

add_to_cartbuy_now

Details:

• Warranty
  no

• Model: HX-2S-DO1 Size: 41*16*3.5mm
• Maximum operating current: 8A
• Upper limit instantaneous current: 10A
• Overcharge voltage range: 3.65v±0.05v
• Over-discharge voltage range: 2.0v±0.05v
• Quiescent current: less than 30uA
• Charging voltage: 7.2v-8.4v
• Short circuit protection: can be protected,
• delayed self-recovery
