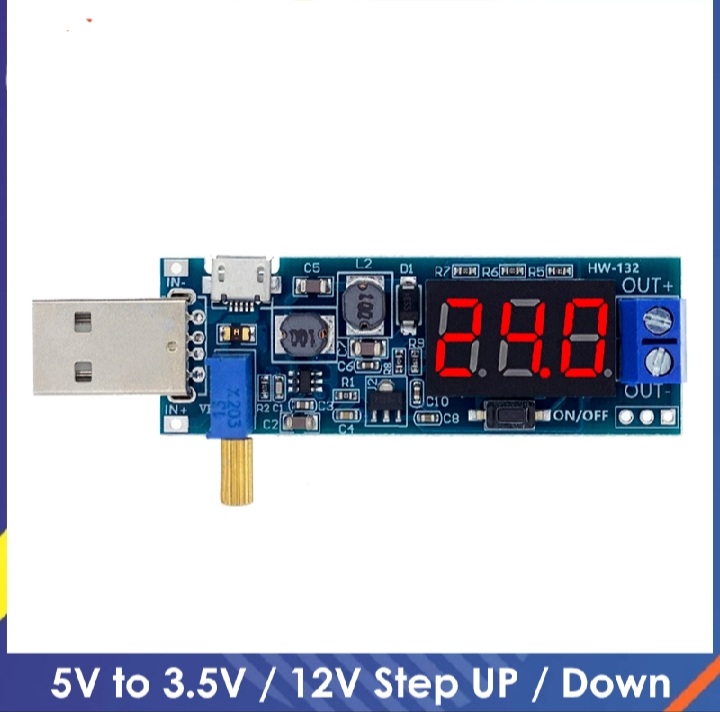

USB boost/buck power supply module, powered by USB, adjust potentiometer to get the required voltage.

2.Features:

  1>.One button to turn off the output;

  2>.Supply ON/OFF display screen;

  3>.Support low power mode;

  4>.Support sleep mode;

  5>.Support both standard USB and Micro USB and pads input voltage;

  6>.Potentiometer with rotating handle.

3.Parameters:

  1>.Input voltage: DC 3.5-12V;

  2>.Output voltage:DC 1.2-24V;

  3>.Output power:

     Input 1.2-2V,output power within 2W;

     Input 2V-20V,output power within 3W;

     Input 20V-24V,output power with in 2.5W;

  4>.Display:3Bit digital tube display;

  5>.Size:80*20*14mm.

4.Use steps:

  1>.Input voltage from Standard USB or Micro USB or 'VIN+' and 'VIN-';

  2>.Turn ON display screen;

  3>.Adjust potentiometer to get the required voltage;

  4>.Connect load.

5.Application:

  1>.Ordinary power supply;

  2>.Battery charger;

  3>.LED drive power;

  4>.Instrument voltage display;

  5>.Test meter;

  6>.Circuit test;

  7>.Power conversion.

6.Please Note:

  1>.It is not a high power supply, please use it within the power range.

7.Package:

  1>.1pcs XY-UP USB boost/buck power supply module
