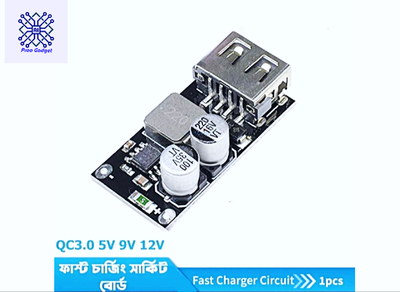

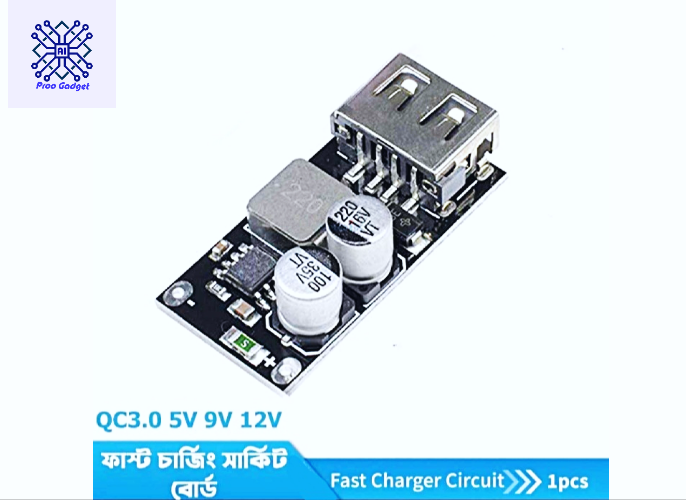

USB QC3.0 QC2.0 USB DC-DC Buck Converter Charging Step Down Module 6-32V 9V 12V 24V to Fast Quick Charger Circuit Board 5V

Input voltage range: 6V-32V DCOutput voltage: default 5V, automatic adjustment between 3~12V after fast charge is triggered.Output power: maximum 24W (5V@3.4A, 9V@2.5A, 12V@2A, etc.)Output voltage wired compensationConversion efficiency: 90%~97%Support agreement: BC1.2, QC2.0, QC3.0, MTK PE1.1/PE2.0, Apple, Samsung AFC, Huawei FCP, Spreadtrum SFCP.Feature:Supports multiple fast charging protocols.Input overvoltage, overcurrent, undervoltage protection.Output overcurrent, short circuit protection.Module over temperature protection.Fine workmanship and good performance.Long service life.Used to solar cell phone charging, car charging retrofit, driving recorder power supply, home power conversion etc.Package included:1 x Charging ModuleNote:Please allow 1-3mm errors due to manual measurement.Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.

categories

Category List

All products

•

Details:

• Warranty
  no

• Input voltage range: 6V-32V DC
• Output voltage: default 5V, automatic adjustment between 3~12V after fast charge is triggered.
• Output power: maximum 24W (5V@3.4A, 9V@2.5A, 12V@2A, etc.)
• Output voltage wired compensation
• Conversion efficiency: 90%~97%
• Support agreement: BC1.2, QC2.0, QC3.0, MTK PE1.1/PE2.0, Apple, Samsung AFC, Huawei FCP, Spreadtrum SFCP.
• Feature:
• Supports multiple fast charging protocols.
• Input overvoltage, overcurrent, undervoltage protection.
• Output overcurrent, short circuit protection.
• Module over temperature protection.
• Fine workmanship and good performance.
• Long service life.
• Used to solar cell phone charging, car charging retrofit, driving recorder power supply, home power conversion etc.
• Package included:
• 1 x Charging Module
• Note:
• Please allow 1-3mm errors due to manual measurement.
• Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.

USB QC3.0 QC2.0 USB DC-DC Buck Converter Charging Step Down Module 6-32V 9V 12V 24V to Fast Quick Charger Circuit Board 5V

89 BDT110 BDTSave 21 BDT

sold_units 355

1

add_to_cartbuy_now

Details:

• Warranty
  no

• Input voltage range: 6V-32V DC
• Output voltage: default 5V, automatic adjustment between 3~12V after fast charge is triggered.
• Output power: maximum 24W (5V@3.4A, 9V@2.5A, 12V@2A, etc.)
• Output voltage wired compensation
• Conversion efficiency: 90%~97%
• Support agreement: BC1.2, QC2.0, QC3.0, MTK PE1.1/PE2.0, Apple, Samsung AFC, Huawei FCP, Spreadtrum SFCP.
• Feature:
• Supports multiple fast charging protocols.
• Input overvoltage, overcurrent, undervoltage protection.
• Output overcurrent, short circuit protection.
• Module over temperature protection.
• Fine workmanship and good performance.
• Long service life.
• Used to solar cell phone charging, car charging retrofit, driving recorder power supply, home power conversion etc.
• Package included:
• 1 x Charging Module
• Note:
• Please allow 1-3mm errors due to manual measurement.
• Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
