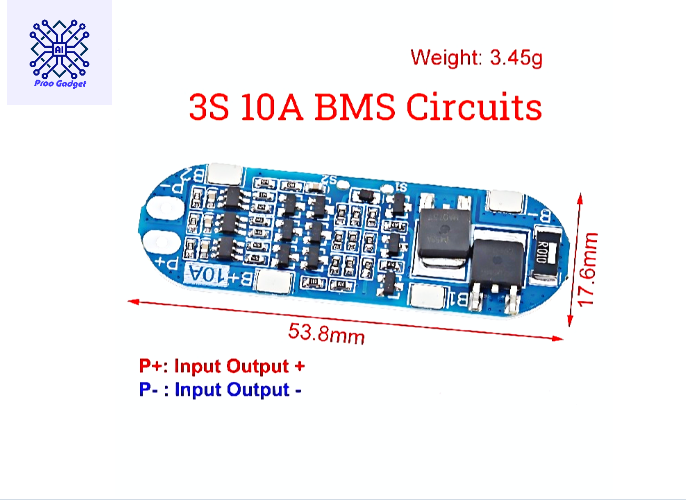

BMS 3S 10A 12.6V 3x18650 Lithium Battery Charger Protection Board Li-ion Charging Module for Wifi Router DIY Drill-1PCS - Battery Management System

Color: blueSize: 50*16*1 mmOvercharge detection voltage:4.25-4.35v=0.05v.Over-discharge detection voltage:2.3-3.0v=0.05v.Maximum working current:5a-8a.Transient current:9a-10a.Operating temperature:-40-50c.Storage temperature:-40-80c.Quiescent current:<6uA.Internal resistance:<60m.Service life:<30,000 hours.

categories

Category List

All products

•

Details:

• Warranty
  no

• Color: blue
• Size: 50*16*1 mm
• Overcharge detection voltage:4.25-4.35v=0.05v.
• Over-discharge detection voltage:2.3-3.0v=0.05v.
• Maximum working current:5a-8a.
• Transient current:9a-10a.
• Operating temperature:-40-50c.
• Storage temperature:-40-80c.
• Quiescent current:<6uA.
• Internal resistance:<60m.
• Service life:<30,000 hours.

BMS 3S 10A 12.6V 3x18650 Lithium Battery Charger Protection Board Li-ion Charging Module for Wifi Router DIY Drill-1PCS - Battery Management System

55 BDT70 BDTSave 15 BDT

sold_units 664

1

add_to_cartbuy_now

Details:

• Warranty
  no

• Color: blue
• Size: 50*16*1 mm
• Overcharge detection voltage:4.25-4.35v=0.05v.
• Over-discharge detection voltage:2.3-3.0v=0.05v.
• Maximum working current:5a-8a.
• Transient current:9a-10a.
• Operating temperature:-40-50c.
• Storage temperature:-40-80c.
• Quiescent current:<6uA.
• Internal resistance:<60m.
• Service life:<30,000 hours.
